What is EMC Testing?

Writer： admin Time：2019-10-11 13:57 Browse：℃

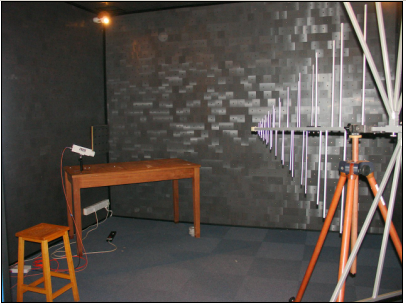

　　EMC is an acronym for Electro Magnetic Compatibility. All electronic devices have the potential to emit and be susceptible to electromagnetic fields. With the proliferation of electronic devices into everyday life there is a huge potential for devices to interfere with each other. No electrical product or installation’s design can be considered complete unless all aspects of EMC are taken into account.


　　This is not only important for common products such as television sets, computers, washing machines, etc.; it is especially important for complex products such as vehicles, aircraft, ships and large industrial installations. These are very sensitive to EMC problems. Compatibility testing allows you to observe the interaction of all electrical and electronic equipment operating in the same environment.


　　EMC Testing is a long term investment since it provides evidence that your product complies with relevant EMC regulations and directive(s). After a successful test program, you can be confident that your product’s reliability will be increased, thus reducing warranty issues and servicing costs, and encouraging brand loyalty. Testing also highlights potential issues or problems with the product that can be fixed before production. Having the right EMC test equipment and design provided by a reliable strategic partner can play a key role in the long term success of your product.




　　Here are some national standards for EMC testing：


　　● European Union,China

　　CISPR 11/ EN 55011/ GB 4824Industry, science and medical (ISM) radio frequency equipment electromagnetism harassment characteristic measuring technique and limiting value

　　CISPR 13/ EN 55013/ GB 13837Sound and visual broadcast receiver and related equipment radio noise pattern limiting value and measuring technique

　　CISPR 14-1/ EN 55014-1/ GB 4343.1Household and similar use electrically operated, electric heating appliance, power tool as well as similar electric appliance radio noise pattern measuring technique and permissible value

　　CISPR 15/ EN 55015/ GB 17743Electric lighting and similar equipment radio harassment characteristic limiting value and measuring technique

　　CISPR 22/ EN 55022/ GB9254Information technology equipment radio harassment limiting value and measuring technique

　　CISPR 14-1/ EN 55014-1/ GB 4343.2Electromagnetic compatibility domestic electric appliances, power tool and similar appliance request , 2nd part: Interference rejection , product class standard

　　CISPR 20/ EN 55020/ GB 9383Sound and visual broadcast receiver and related equipment interference rejection limiting value and measuring technique

　　CISPR 24/EN 55024/ GB 17618Information technology equipment interference rejection limiting value and measuring technique

　　EN 61547/ GB 18595The general lighting requests with the equipment electromagnetic compatibility interference rejection

　　EN 61000-6-1/ GB 17799.1EMC general standard housing, commercial and light industry environment interference rejection experiment

　　EN 61000-6-2/ GB 17799.2EMC general standard In industry environment interference rejection experiment

　　EN 61000-6-3/ GB 17799.3EMC general standard In housing, commercial and light industry environment launch standard

　　EN 61000-6-4/ GB 17799.4EMC general standard In industry environment launch standard

　　EN 62040-2/ GB 7260.2UPS Second part: EMC request

　　EN 61326/ GB 18268The survey, the control and the test chamber use the electricity equipment EMC requests

　　EN 60601-1-2/ IEC 60601-1-2Medical service electrical equipment - EMC requests

　　EN 61000-3-2/ GB 17625.1EMC Limiting value Harmonic current launch limiting value (equipment each input current ≤16A)

　　EN 61000-3-3/ GB 17625.2EMC Limiting value Equipment ≤16A also turns on unconditionally which to each nominal current voltage change, voltage undulation and twinkle limit which produces in the public low pressure power supply system

　　IEC 61000-4-2/ GB 17626.2EMC Experiment and survey technology static discharge interference rejection experiment

　　IEC 61000-4-3/ GB 17626.3EMC Experiment and survey technology Radio frequency electromagnetic field radiation interference rejection experiment

　　IEC 61000-4-4/ GB 17626.4EMC Experiment and survey technology Electricity fast transient pulse group interference rejection experiment

　　IEC 61000-4-5/ GB 17626.5EMC Experiment and survey technology Surge (impact) interference rejection experiment

　　IEC 61000-4-6/ GB 17626.6EMC Experiment and survey technology Radio frequency field induction conduction harassment interference rejection

　　IEC 61000-4-8/ GB 17626.8EMC Experiment and survey technology Power frequency magnetic field interference rejection experiment

　　IEC 61000-4-11/ GB 17626.11EMC Experiment and survey technology The voltage falls, the short-time interrupt and the voltage change interference rejection experiment temporarily

　　IEC 61000-4-12/ GB 17626.12EMC Experiment and survey technology Vibration wave interference rejection experiment

　　IEC 61000-4-13/ GB 17626.13EMC Experiment and survey technology The alternating current supply port overtone, the harmony affects the electrical network signal the low frequency interference rejection experiment


　　● America

　　FCC 47 CFR Part 15 Subpart BRADIO FREQUENCY DEVICES

　　FCC 47 CFR Part 18INDUSTRIAL, SCIENTIFIC, AND MEDICAL EQUIPMENT


　　● Canada

　　ICES-001Industrial, Scientific and Medical (ISM)Radio Frequency Generators

　　ICES-003Digital Apparatus

　　ICES-005Radio Frequency Lighting Devices (RFLDs)


　　● Australia

　　AS/NZS CISPR 11Industrial scientific and medical (ISM) radio-frequency equipment Electromagnetic disturbance characteristics Limits and methods of measurement CISPR 11

　　AS/NZS CISPR 13Sound and television broadcast receivers and associated equipment Radio disturbance characteristics Limits and methods of measurement CISPR 13

　　AS/NZS CISPR 14.1Electromagnetic compatibility Requirements for household appliances, electric tools and similar apparatus Part 1: Emission Supersedes AS/NZS 1044

　　AS/NZS CISPR 14.2Electromagnetic compatibility Requirements for household appliances electric tools and similar apparatus Part 2: Immunity Product family Standard

　　AS/NZS CISPR 15Limits and Methods of Measurement of Radio Disturbance Characteristics of Electrical Lighting and Similar Equipment CISPR 15

　　AS/NZS CISPR 20Sound and television broadcast receivers and associated equipment Immunity characteristics Limits and methods of measurement CISPR 20

　　AS/NZS CISPR 22Information technology equipment Radio disturbance characteristics Limits and methods of measurement CISPR 22

　　AS/NZS CISPR 24Information Technology Equipment - Immunity Characteristics - Limits and Methods of Measurement CISPR 24


　　● Japan

　　J55001(H14)Stipulation of strength of noise

　　J55013(H14)Approved value and measurement method of radio interference wave quality of sound and television broadcasting receiver and related equipment

　　J55014-1(H14)Electric household machinery and equipment, approved value and measurement method of disturbance wave from electromotive tool and similar equipment

　　J55022(H14)Approved value and measurement method of disturbance wave from information technology device

　　RF


　　● European Union

　　EN 300 220-1/-2Electromagnetic compatibility and Radio spectrum Matters(ERM);Short Range Devices(SRD); radio equipment to be used in the 25MHz to 1000MHz frequency range with power levels ranging up to500mW

　　EN 300 330-1/-2Electromagnetic compatibility and Radio spectrum Matters(ERM); Short Range Devices(SRD);radio equipment in the frequency range 9kHz to 25MHz and inductive loop systems in the frequency range 9kHz to 30MHz

　　EN 300 440-1/-2Electromagnetic compatibility and Radio spectrum Matters(ERM);Short Range Devices; radio equipment to be used in the 1GHz to 40GHz frequency range

　　EN 300 328Electromagnetic compatibility and Radio spectrum Matters(ERM); wideband transmission systems; data transmission equipment operating in the 2,4GHz ISM band and using wideband modulation techniques; harmonized EN covering essential requirements under Article 3.2 of the R&TTE Directive

　　EN 300 422-1/-2Electromagnetic compatibility and Radio spectrum Matters (ERM);wireless microphones in the 25MHz to 3GHz frequency range

　　EN 301 357-1/-2Electromagnetic compatibility and Radio spectrum Matters(ERM); cordless audio devices in the range 25MHz to 2000MHz; consumer radio microphone sand in-ear monitoring systems operating in the CEPT harmonized band 863MHz to 865MHz

　　EN 301 489-1Electromagnetic compatibility and Radio spectrum Matters(ERM); ElectroMagnetic Compatibility(EMC) standard for radio equipment and services; Part1:Common technical requirements

　　EN 301 489-3Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services;Part3:Specific conditions for Short-Range Devices (SRD) operating on frequencies between 9kHz and 40GHz

　　EN 301 489-9Electromagnetic compatibility and Radio spectrum Matters(ERM); ElectroMagnetic Compatibility(EMC) standard for radio equipment and services;Part9:Specific conditions for wireless microphones, similar Radio Frequency (RF) audio link equipment, cordless audio and in-ear monitoring devices

　　EN 301 489-17Electromagnetic compatibility and Radio spectrum Matters(ERM); ElectroMagnetic Compatibility(EMC) standard for radio equipment and services;Part17:Specific conditions for 2,4GHz wideband transmission systems and 5GHz high performance RLAN equipment

　　EN 50371Generic standard to demonstrate the compliance of low power electronic and electrical apparatus with the basic restrictions related to human exposure to electromagnetic fields(10MHz??300GHz)??general public


　　● America

　　FCC 47 CFR Part 15 Subpart CRADIO FREQUENCY DEVICES


　　● Canada

　　RSS-210Low-power Licence-exempt Radiocommunication Devices (All Frequency Bands): Category I Equipment

　　RSS-310Low-power Licence-exempt Radiocommunication Devices (All Frequency Bands): Category II Equipment


　　● Australia

　　AS/NZS 4268Radio equipment and systems-Short range devices-Limits and methods of measurement


　　● Japan

　　Regulation of the Extremely Low Power Radio Station

　　EMF

　　EN 50366Household and similar electrical appliances??Electromagnetic fields??Methods for evaluation and measurement

　　E-Mark

　　ECE 10.02UNIFORM PROVISIONS CONCERNING THE APPROVAL OF VEHICLES WITH REGARD TO ELECTROMAGNETIC COMPATIBILITY
